  • Radio Frequency Bipolar Units Model RFU-100BPlus

Read More

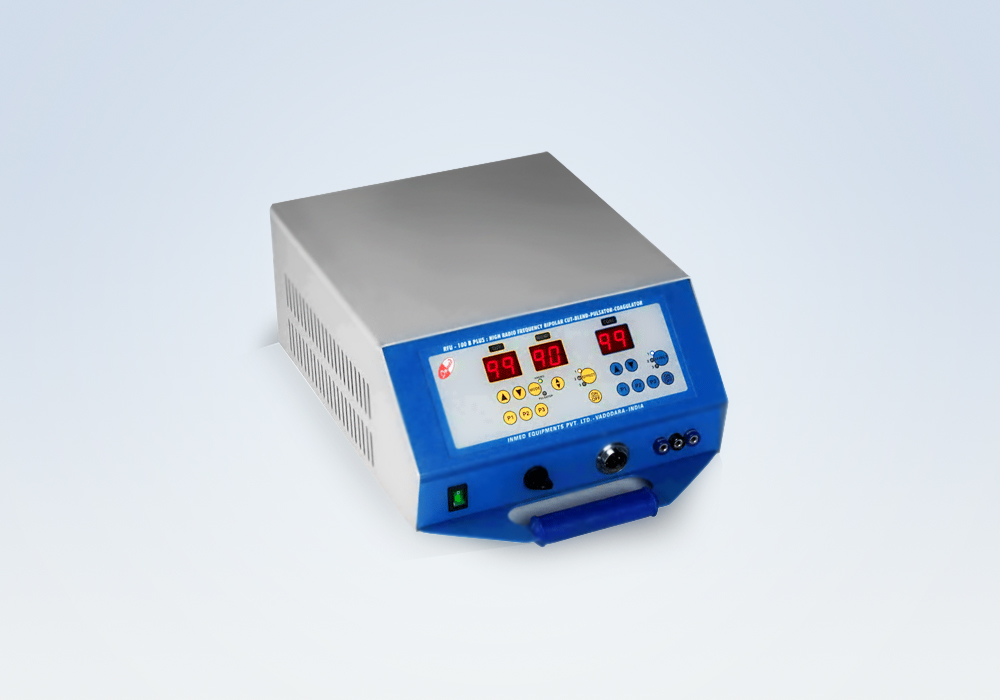

The state-of-the-art technology INMED High Radio Frequency Bipolar Cut-Blend-Coagulator RFU-100B PLUS is specially designed for the Laproscopic surgeons for Gynec work, General surgical work (Gall bladder, Hernia, etc…) and Neuro-Endology. Also suitable for Neurology, Dermatology, Gynecology, Endoscopic, Vascular, ENT, Plastic and Dental Surgery.

Using indigenous technology for the first time in India the Cautery of international standard is made available.

  • Microprocessor based Cut and Coagulator with 0 to 99 Watts output
  • 2 MHz Quartz Stabilized Output Frequency (HIGH RADIO FREQUENCY)
  • Linear Output Power using PWM & MOSFET Technology even with 20% Power fluctuation
  • Digital Display of Actual Power Output with 1 Watt Resolution (Micro mode in coagulation: Up to 10 watts in steps of 0.2 Watt)
  • User Settable Haemostasis for blending during the Cut (10 to 90 %)
  • A newer PULSATOR mode developed as tissue kinetic and can be used for coagulating as well as cutting.
  • 3 different effects for different tissue impedances in Cut and Coag.
  • Tactile keypad for different settings.
  • Programmable Memory storage of 3 levels of output Power each for Cut, Coagulation & Pulsator mode.
  • Last Power Setting Recall on Switching On
  • High Performance Sinusoidal Wave with no Charring resulting in negligible tissue trauma or shrinkage.
  • Advanced R-Core Transformer Technology.
  • Compact, Portable, Lightweight and Rugged.
  • Shockproof and Fireproof Foot switch.

Salient Features of 100B, When used by neuro - Surgeons:

  • 2MHz Operating Frequency - not a electro surgery unit, but a radio surgery - Unit comparable to LASER.
  • Excellent quality coagulation, can seal thinnest wall vessels-neo-vascularization
  • Can be used with JUST 5 watts on mid-brain, max required 15 to 25 watts.
  • Bipolar cut is better than using mono loop as the current is restricted between 2 Flanges only, so no peripheral damage.
  • If bipolar cut is used, then we are not giving undue traction to the tumor and so it prevents traction injuries.
  • Due to the 2 MHz operating frequency, the tissue may stick less to the forceps as compared to the low frequency electro surgical units.
  • All other safety features like explosion / shock proof footswitch, auto shut off
  • State of art Microprocessor based and Digital technology used.
  • Spill Proof Membrane Panel
  • 3 Programmable Memories for Output Power, for CUT and COAG each bullet Last Used Power Memory recall on Switch ON
